DigiTrack Mark IV

Tracking systems DigiTrack Mark IV

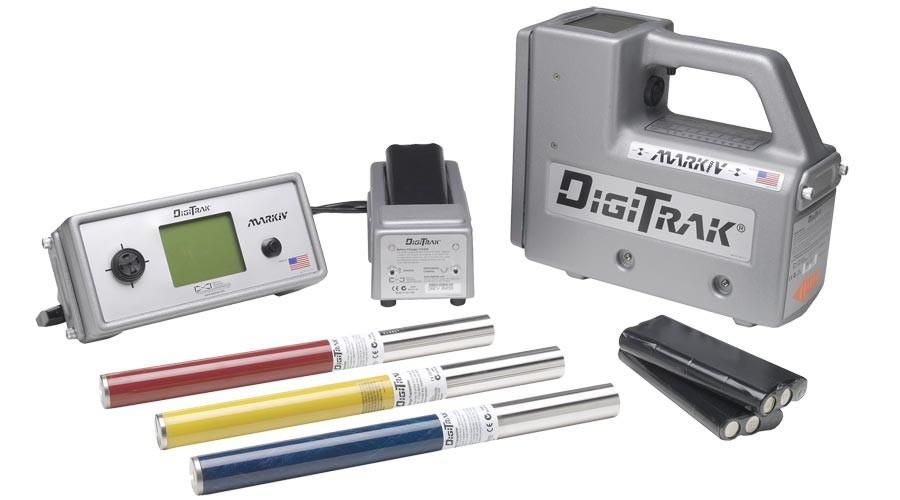

The radio system DigiTrack Mark IV's tracking the position of the drill bit under the ground. The system consists of a handheld receiver, a transmitter placed in the drill head and remote display. The transmitter emits radio waves with information about the position of the drill head, which are received and displayed on the receiver. At the same time the receiver transmits the information to display in the cab of the drilling rig.

Basic parameters:

Manufacturer: Digital Control Incorporated
The main components of the system:

  • receiver
  • transmitter (probe)
  • remote display

Measuring range: max. 610 m and a depth of 26 m *
Accuracy: +/- 5%
* Depending on the probe
